Prepare for Deployment

Deployment Planning

The first step is defining your deployment topology. The optimal topology depends on your workload profile, performance objectives, and storage requirements. RegattaDB supports a wide range of deployment configurations, allowing the system to be tailored to your specific requirements. General deployment guidelines:

Management Modules
- SM - Deploy a single SM module for every RegattaDB system
- SNA - Deploy one agent on every node that hosts at least one Operational Module
Operational Modules
- GDD, DCM, Sequencer - Deploy one instance of each module per RegattaDB system
- RDB - Deploy at least one RDB module per RegattaDB system

Below are several common configurations.

Single Node

A single-node deployment consists of a single server hosting all RegattaDB modules:

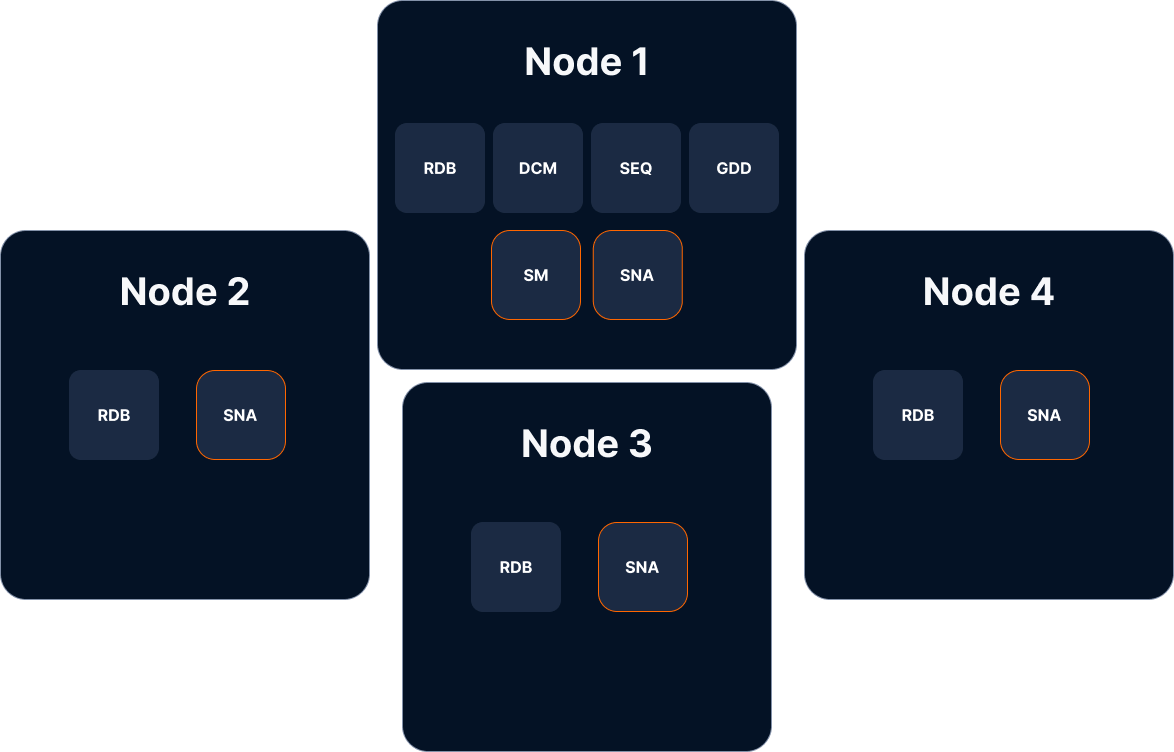

Multi-Node – Classic

The most common multi-node deployment uses the following topology:

One node hosts all RegattaDB modules, as in a single-node deployment.
All additional nodes host both the RDB and SNA modules.

For guidance on sizing and configuring your RegattaDB deployment, refer to Best Practices or contact Regatta Support for assistance.

Provision the Deployment Nodes

Next, provision the nodes that will host your RegattaDB deployment, ensuring that each node meets the minimum hardware, storage, networking, and software prerequisites. The exact hardware requirements depend on your deployment topology and workload characteristics. For guidance on sizing your deployment, refer to Best Practices or contact Regatta Support for assistance.

Download the RegattaDB Software

Next, download the RegattaDB software package. RegattaDB is distributed as a set of RPM packages, each corresponding to a specific module or utility. Copy the required RPM packages to the nodes on which they will be installed according to your planned deployment topology. The following example shows the contents of a RegattaDB software package.

Deployment Software

Each of the RPM packages below corresponds to one of the six RegattaDB modules.

regatta-dcm-<version>.el8.x86_64.rpm
regatta-gdd-<version>.el8.x86_64.rpm
regatta-rdb-<version>.el8.x86_64.rpm
regatta-sequencer-<version>.el8.x86_64.rpm
regatta-sm-<version>.el8.x86_64.rpm
regatta-sna-<version>.el8.x86_64.rpm

EULA Acceptance

Before deploying RegattaDB, you must read and accept the Regatta End User License Agreement (EULA). Acceptance of the EULA is integrated into the RPM installation process and is required before the installation can be completed.

Interactive installations (for example, using yum install or dnf install) - You will be prompted to review and accept the EULA during installation
Automated installations - Set the environment variable ACCEPT_EULA=1 to indicate acceptance of the EULA and suppress the interactive prompt.

If you are using automated installation, we strongly recommend reviewing the EULA in advance. The latest version is available at: https://regatta.dev/eula/

Install the RPM Packages

Install the required RegattaDB RPM packages using yum or dnf:

sudo yum install regatta-<package-name>-<version>.el8.x86_64.rpm
or
sudo dnf install regatta-<package-name>-<version>.el8.x86_64.rpm

During installation, you will be prompted to review and accept the Regatta End User License Agreement (EULA):

******************************************************************************
Regatta End User License Agreement (EULA)
URL: https://regatta.dev/eula/
******************************************************************************
To continue installation, type Y and press Enter.
To abort, press any other key and press Enter.
Accept EULA? [y/N]:

For unattended or automated installations, pre-approve the EULA by setting the ACCEPT_EULA=1 environment variable:

sudo ACCEPT_EULA=1 yum install regatta-<package-name>-<version>.el8.x86_64.rpm
or
sudo ACCEPT_EULA=1 dnf install regatta-<package-name>-<version>.el8.x86_64.rpm

All RegattaDB RPM packages are installed under /opt/regatta/<major.minor>. For convenience, you can use the /opt/regatta/current symbolic link to reference the current installation. The examples below show the installation directories for the SM and RDB modules. SM:

/opt/regatta/current/sm
├── bin
├── LICENSE
├── sm_1
│   ├── bin
│   ├── conf
│   ├── log -> /var/log/regatta/sm/sm_1
│   └── repo
└── tools

RDB:

/opt/regatta/current/rdb
├── bin
├── LICENSE
├── rdb_1
│   ├── bin
│   ├── conf
│   ├── log -> /var/log/regatta/rdb/rdb_1
│   └── repo
└── tools

Additional RegattaDB RPM Packages

In addition to the RegattaDB software modules, the RegattaDB self-hosted package includes several utilities that simplify deployment, administration, backup, and troubleshooting. The following RPM packages are included:

Regatta Deployment Tool (RDT) - An automated deployment tool for provisioning and configuring RegattaDB clusters. For detailed instructions, refer to the Regatta Deployment Tool (RDT) guide.
Regatta Debug Tool - A Docker-based utility for connecting to running RegattaDB clusters to perform live diagnostics, troubleshooting, and debugging.
Regatta Bench - A benchmarking utility for executing preconfigured workloads against a RegattaDB cluster to evaluate performance and validate deployments.

regatta-bnr-<version>.el8.x86_64.rpm
regatta-rdt-<version>.el8.x86_64.rpm
regatta-debug-<version>.el8.x86_64.rpm

Client Software

The self-hosted deployment package also includes the RegattaDB client components. For installation and usage instructions, refer to Drivers & Clients. The following RPM packages are included:

Regatta Client Library
Regatta CLI
Regatta Connect - A collection of drivers, ORMs, and connectors for integrating RegattaDB with external applications, frameworks, and data platforms.

regatta-cli-<version>.el8.x86_64.rpm
regatta-client-<version>.el8.x86_64.rpm
regatta-connect-<version>.el8.x86_64.rpm

Storage Devices

RegattaDB is designed to work directly with raw block storage devices to minimize filesystem overhead and achieve the highest possible storage performance. Direct access to raw devices allows RegattaDB to optimize data layout and I/O patterns specifically for database workloads.

Storage Requirements

Each RDB module must be assigned at least one storage device that is not used as the operating system boot device. RegattaDB supports virtually any raw block storage device, including:

Local NVMe devices (recommended for best performance)
Local SSD devices
SAN-attached block storage (Fibre Channel, iSCSI, etc.)
Cloud block storage volumes (for example, Amazon EBS, Azure Managed Disks, or Google Persistent Disk)
Shared block storage presented to the operating system as a raw block device

Using Filesystem-Backed Storage

Although direct raw block devices are recommended, RegattaDB can also use file-backed storage devices when raw devices are not available. In this configuration, a regular file located on a mounted filesystem is presented to RegattaDB as a storage device. For example, the following command creates a sparse 1 TB file on an existing filesystem:

sudo fallocate -l 1T /mnt/regatta_storage/rdb_device1.dat

The resulting file can then be registered as a storage device during deployment:

MANAGE STORAGE DEVICE ADD (
  NODE "Node01",
  NAME "Node01_Disk1",
  PATH "/mnt/regatta_storage/rdb_device1.dat"
);

While this approach is fully supported, direct raw block devices generally provide the best performance.

Persistent Module State

Each RegattaDB module maintains a small amount of persistent state under its repository directory:

/opt/regatta/current/<module>/<instance>/repo

For example, the repository for the first RDB module is located at:

/opt/regatta/current/rdb/rdb_1/repo

If required by your deployment, this directory may reside on persistent storage by mounting the desired storage device at the appropriate location.

Storage Permissions

The deployment user must have read and write access to all storage devices used by RegattaDB. For raw block devices, assign ownership to the deployment user and group before deployment:

sudo chown <user>:<group> /dev/path/to/device

Repeat this step for each storage device assigned to RegattaDB.

Deployment User

RegattaDB requires a deployment user with the appropriate ownership and permissions for the installation directories, shared memory, log directories, and storage devices. The deployment owns the following resources:

Regatta installation directory - /opt/regatta - created during RPM installation
Shared memory directory - /dev/shm/Regatta - created automatically by RegattaDB at runtime
Log directory - /var/log/regatta - created during RPM installation
Storage devices allocated for RegattaDB

During installation, the RPM packages automatically create a default deployment user and group both named regatta. If you wish to use a different deployment user, follow these steps:

Installing with a Custom Deployment User

To install RegattaDB with a custom deployment user and/or group, set the REGATTA_USER and REGATTA_GROUP environment variables when installing the RPM package. Each RPM creates the OS user/group if it doesn’t already exist, and applies ownership of its installed files to it. REGATTA_USER and REGATTA_GROUP must:

Not be empty
Not be root
Start with a letter or underscore, and contain only letters, digits, ., _, or -

If a value doesn’t meet these requirements, the installation fails immediately with an error. If either variable is left unset, it defaults to regatta.

Use the same REGATTA_USER/REGATTA_GROUP values for every RegattaDB RPM you install. Each package independently resolves the account and applies ownership to its own files, so using inconsistent values across packages will leave some files owned by the wrong user/group.

Example Given the following RPM packages:

regatta-cli-<version>.el8.x86_64.rpm
regatta-client-<version>.el8.x86_64.rpm

Install them with a custom deployment user and group, myuser/mygroup:

sudo REGATTA_USER=myuser REGATTA_GROUP=mygroup yum install \
  regatta-cli-<version>.el8.x86_64.rpm \
  regatta-client-<version>.el8.x86_64.rpm

If myuser/mygroup don’t already exist on the system, they are created automatically as a system account (no login shell, no home directory).

IP Assignment

Assign IP addresses to each node in the RegattaDB cluster. Prepare a list of:

Internal IP addresses used for communication between RegattaDB modules.
External IP addresses used by client applications to access RegattaDB (if applicable).

Note: RegattaDB clients automatically use the external IP address when one is configured for a node. Otherwise, they fall back to the node’s internal IP address.

Each RegattaDB module requires two ports:

A Communications Port, used for communication between RegattaDB modules.
A Service Port used for internal service operations.

By default, RegattaDB uses the port assignments shown below. We recommend using these default values unless your deployment requires otherwise (for example, when running multiple RDB modules on a single node).

Module	Communications Port	Service Port
SM	8840	5000
SNA	8841	5001
Sequencer	8842	5002
GDD	8843	5003
DCM	8844	5004
RDB	8850	6001

Firewall Setup

Configure the firewall on each node to allow traffic on the required RegattaDB IPs and ports. At a minimum, ensure that:

The communications and service ports are accessible between all RegattaDB nodes.
Client applications can access the required external endpoints, as defined by your deployment.
